Bulldozers Parts in Colorado - Dozers are similar to a tractor that is outfitted with a dozer blade. Crawler tractors run on continuous track as opposed to relying on wheels, although, wheeled versions are also on the market. The large metal plate attached to the front of the bulldozer is called the dozer blade. Large volumes can be moved with the dozer blade including dirt, gravel and snow on a variety of landscapes. The back of the bulldozer is usually fitted with large, metal teeth, called the ripper, useful in breaking up hard, compressed material.
Specifics
A typical bulldozer utilizes tracks that provide excellent maneuvering options and stellar traction on unstable, uneven or rough ground with a unique transmission that enables the dozer to operate with more tractive force. Sinking into unstable environments is prevented as the track width evenly distributes the weight of the machine. Tracks are also available in increased widths, known as swamp tracks. Dozers are popular within mining applications, land clearing and construction jobs that need strong and stable equipment to transport materials within a variety of environments.
The dozers that rely on a wheeled system typically consist of four wheels that use a 4WD system combined with an articulated hydraulic steering mechanism. The bulldozer blade relies on a hydraulic system for operation instead of a mechanical system and is located in front of the articulation joint.

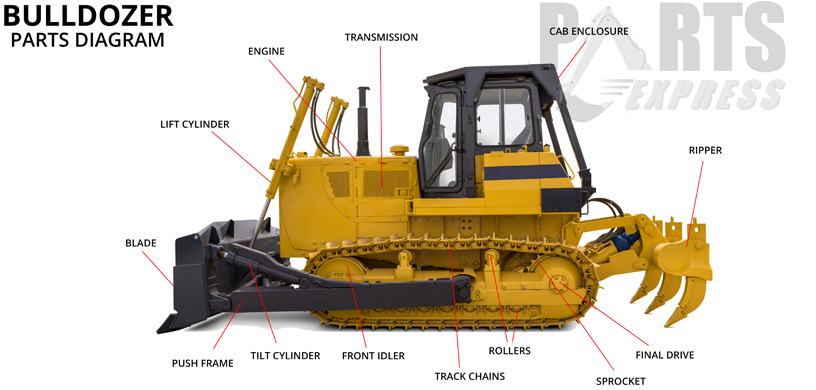

The bulldozer is easily recognized from other types of industrial equipment thanks to its main components, the ripper and the dozer blade.
The Dozer Blade
The huge metal plate that is located at the front end of the bulldozer is called the dozer blade. The dozer blade is utilized for pushing heavy materials and items including sand, aggregate and gravel. Gravel, dirt, snow and rubbish are commonly pushed into new locations with bulldozers. Typically, there are 3 different kinds of dozer blades including the straight blade, the semi-U blade and the universal blade.
The universal blade, or U blade is tall, curved and has large wings on the side used to carry extra material. The straight blade, or S blade, is short, has no lateral curve and no side wings and is also used for fine earth grading. The semi-U blade, or S-U blade, is a combination blade which is shorter, is less curved and has side wings, but which are smaller than those on the U blade. This blade is commonly used to move large rock and boulder piles.
Dozer blades commonly attach horizontally or at an angle to the tractor. Tilt cylinders can adjust the dozer blade angle. Dozer blades can be sharpened to enable cutting items including tree stumps and roots. An angledozer features a blade that is pushed ahead on one side to enable items to be cleared out of the path of the bulldozer. It is common to see an angledozer in action on highways and roads during winter snow removal.
Many bulldozers come equipped with a bull blade. The reinforced centre portion of the bulldozer is called a bull blade. This allows a bulldozer to push a scraper, which is another large, heavy piece of equipment used to move earth.
Dozer blades are common attachments on a variety of military vehicles. Several military vehicles are designed to allow a dozer blade to be affixed to the front of the vehicle, such as combat engineering vehicles, artillery tractors and battle tanks. The dozer blade helps the battle tank maneuver items and mines to create combat positions or dig shelters. It also helps create a protective barrier against artillery and explosives.
The Dozer Ripper
A dozer ripper is the long, tooth-like tool, known as the shank, on the back of a bulldozer. There are single shank options on dozer rippers or groups with two or more shanks available depending on the application required. The single shank design is also known as a giant ripper and is preferred for large, very dense projects. Multi-shank rippers refer to multi-shank designs.
The boot refers to the tip of the shank and consists of a detachable metal piece. This allows for replacement of the boot when it becomes dull or broken, rather than replacement of the entire shank.
The dozer ripper is used to break up rock, concrete, earth or other solid objects and material into smaller pieces which are then easier for the bulldozer to move using the dozer blade. This allows for quicker project completion.
In agricultural applications, the dozer ripper is used to break up the ground and rocks for planting and plowing. In certain locations in New Zealand and Italy, the dozer ripper helps to access ancient lava flows that are rich in nutrients and normally would not be able to be farmed due to the density of the ground. With use of the ripper, the top layer of lava rock is loosened, allowing for the surface to be farmed.
Bulldozer Adaptations
Adaptations to the bulldozer over the years have enabled it to become useful for numerous applications.
The first bulldozer design was too large for working in confined spaces such as mining applications. These limitations led to more compact bulldozer designs and models. Calfdozers refer to small, lighter bulldozer models.
In snow areas, such as ski hills, a lighter version of the bulldozer is used for snow removal and preparing areas for winter sports.
The loader tractor is another popular adaptation. This was created by replacing the dozer blade with a large bucket, raised and lowered with the use of hydraulic arms. This adapted bulldozer model is referred to as a track loader, trackscavator or Drott to load gravel, earth and rocks into dump trucks.
A less common bulldozer attachment is a stumpbuster. This attaches to the rear of the bulldozer. The horizontally protruding single spike is used to split up tree stumps into smaller more manageable pieces for removal. These are used primarily by bulldozers working on land clearing projects. In those instances, the bulldozer is often also equipped with a brush-rake blade.
Even with numerous bulldozer adaptations on the market, the original form of the machine is still popular in road carving, ground leveling, earthmoving and deforestation projects. Heavy bulldozers are primarily used to level terrain in preparation for construction. The construction is completed mostly by smaller bulldozers and loader tractors.
Origins
In 1923, the first bulldozer was designed when farmer James Cummings joined forces with a draftsman named J. Earl McLeod. The initial design created was the dozer blade made to plow fields by attaching to an existing tractor. The first bulldozer was built soon after and the prototype is can be seen in Morrowville, Kansas’ city park. Later that year, Cummings and McLeod filed for a US patent on their bulldozer attachment which was granted in January 1925. It was normal for tractors to run on a track system at this time. The creation of the armored tank in World War I was largely due in part to this early version of the super maneuverable tractor.
A variety of custom and homemade attachments started to appear in 1929 on tracked and wheeled tractors. However, the popularity of the bulldozer attachment did not occur until the mid-1930s. Prior to 1940, hydraulic cylinders were added and by the ‘50s, bulldozer popularity began to grow with the term bulldozer referring to the whole machine.
With their growth in popularity for large and small construction jobs, bulldozers became larger and stronger. Over time, large companies including Caterpillar and John Deer started manufacturing wheeled and tracked bulldozer models. The manual transmission was replaced over time with automatic transmissions and electric motors and hydraulic cylinders eventually replaced cable winch systems. More effective and accurate control systems were introduced thanks to these upgrades. Nowadays, GPS technology has been added to improve grade control and enhance bulldozing tasks.
What began as a tractor attachment to be used for farming jobs has transformed into one of the most versatile machines in civil engineering, mining, construction, military operations and building maintenance.
